| 品牌：四达牌 | 型号：四达ZC20 | 额定载重：4t |
| 装载机械类型：中型装载机 | 动臂提升时间：7s | 铲臂提升时间：7s |
| 最大牵引力：12000kN | 额定斗容量：2000m3 | 发动机功率：50/2400kw |
| 整机重量：4050t | 装卸方式：前卸式 | 行走方式：轮胎式 |

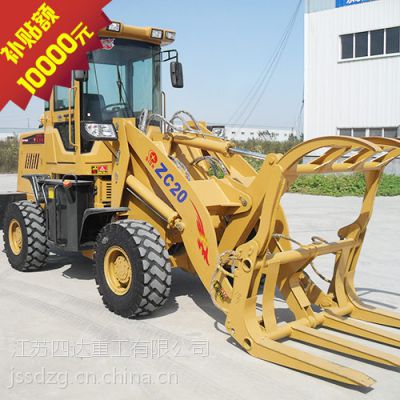

ZC20型农用轮式抓草机是我公司生产的***小型农用轮胎式抓草机，性能***，结构合理，操作维护方便，广泛适用于小麦、玉米、高粱大豆等农作物秸秆的回收和利用，尤其适用于造纸行业，生物发电及棉花、甘蔗的装载、运输、储存、堆垛等。也可将机具更换为铲斗，用来铲、装、卸、运土和石料一类散状物料，也可以对岩石、硬土进行轻度铲掘作业。
ZC20 type Agricultural Wheeled grab grass machine is my company&＃39;s new generation of small agricultural tire grasping grass machine, advanced performance, reasonable structure, convenient operation and maintenance, it is widely used in the recovery and use of wheat, corn, sorghum, soybeans and other crops straw, especially for the paper industry, biomass power generation and cotton, sugar cane loading, transportation, storage, stacking and so on. Machines can also be replaced by a bucket, to shovel, loading and unloading, earth and stone for a class of bulk materials can also be rock hard soil in mild excavation work.
ZC20抓草机基本参数
型 号(model) | ZC20 | ||
型 式(type) | 轮胎式 铰接转向 (Articulated steering tire) | ||
发动机功率kW/r(min)-1 (Engine power) | 50/2400 | ||
尺寸 参数 | 总 长 mm (overall length) | 6070 | |
总 宽 mm(overall bandwidth) | 1860 | ||
总高（带驾驶室）mm (overall height :take a cab) | 2870 | ||
轮 距 mm (track width) | 1470 | ||
轴 距 mm(wheelbase) | 2320 | ||
整机质量 kg(total weight) | 4150 | ||
最小转弯半径 mm (minimum turning radius) | 4885 | ||
爬坡能力 %(°) (maximum climbing ability) | 40(22) | ||
最小离地间隙 mm (minimum ground clearance) | 250 | ||
速度(velocity) | 前 进 km/h(forward) | 低:8;高:21(low:8 high:21) | |
后 退 km/h(backward) | 低:8;高:21(low:8 high:21) | ||
液压系统工作装置形式及标定压力MPa (And the calibration of pressure MPa hydraulic system form) | 齿轮泵 16(gear pump 16) | ||
工 作 装 置 | 卸载高度 mm(unloading height) | 3170 | |
卸载距离 mm(unloading distance) | 1255 | ||
动作 时间(actuation time) | 动臂举升时间 s (The boom lifting time) | ≤6.0 | |
作业循环时间 s (The cycle time of operation) | ≤16.0 | ||
额定装载体积/质量 m3/kg (rated capacity/load) | 2.0/1500 | ||
抓具开度 mm (Grab the maximum opening) | 1500 | ||
转向角 ° (maximum steering angle) | ≥35 | ||
掘起力 kN (Breakout force) | ≥19 | ||
静态倾翻载荷 kg (Static tipping load) | ≥3000 | ||
